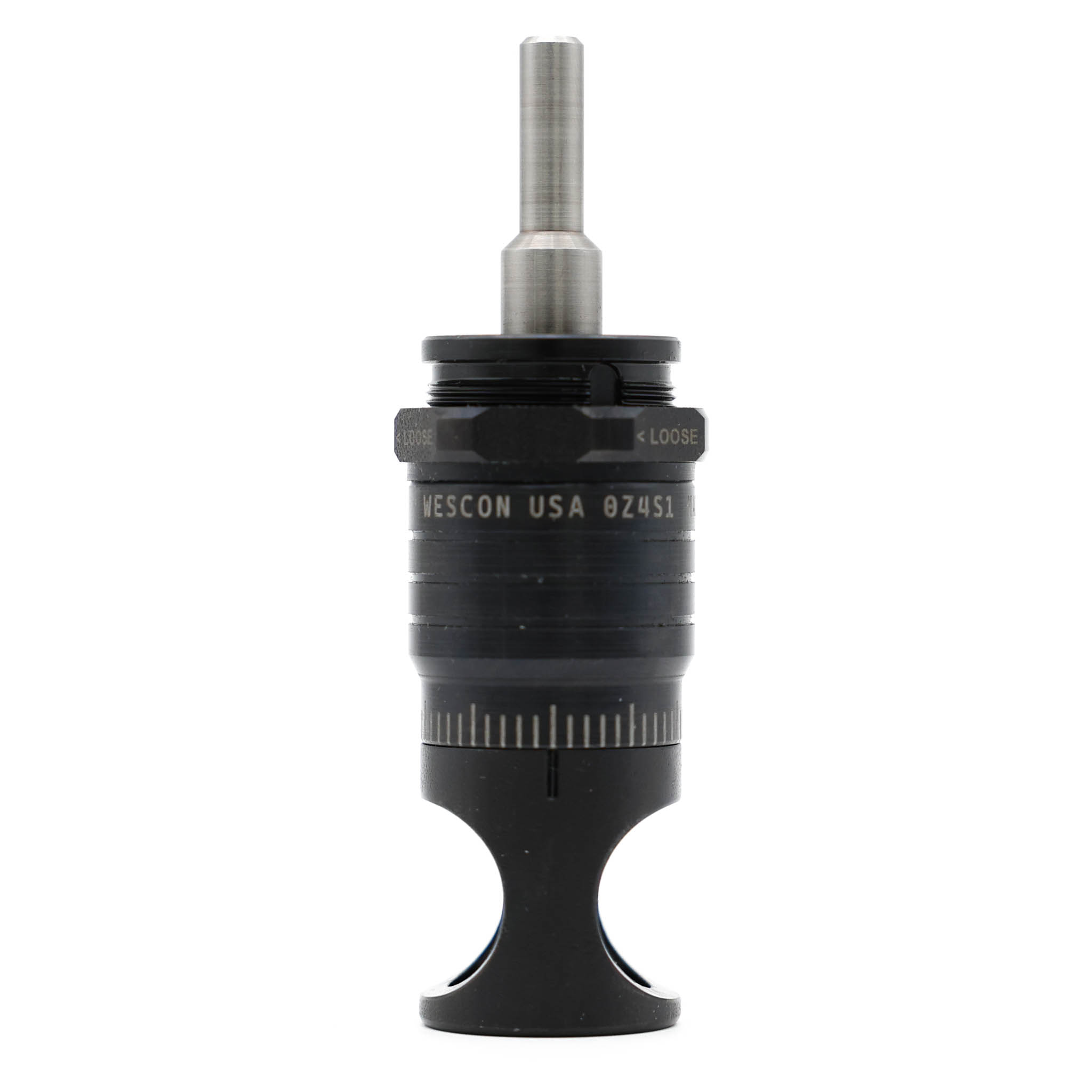

Wescon 596 Microstop - 1/4-28 - 3/4" Cutter Capacity - Straight Skirt
HIGH SPEED HEAVY DUTY
Part NumberWES596-S
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball Bearings
Heavy Duty Thrust Bearing
: Yes
Incremental Adjustment
: 0.0005 in
Shaft Travel
: 0.300 in
Dust Seal
: Integrated Dust Seal
Cutter Thread
: 1/4-28
Shaft
: Round
Shaft Diameter
: 1/4 in
Cutter Capacity
: 3/4 in
Skirt
: Straight
Skirt Description
: 1 in OD 3/4 in Cutter Capacity
Solid Stop
: Yes
Country of Origin
: USA
CONFIGURE
Your Selected Model:Â WES596-S
Skirt Style: Straight (S)
S
Straight
S2L
2-Leg
S3L
3-Leg
SL
Slotted
F
Flanged
FH
Flanged High
SF
Spherical Flanged
I
Internal Thread
SI
Slotted Internal Thread
E
External Thread
SE
Slotted External Thread
B
Bell
BI
Bell Internal Thread
SBI
Slotted Bell Internal Thread
BE
Bell External Thread
SBE
Slotted Bell External Thread
BF
Bell Flanged
SCA
Straight Cutaway
FCA
Flanged Cutaway
F2L
Flanged 2-Leg
C
Close Quarters
S-875
Straight 0.875 in OD
F-1125
Flanged 1.125 in OD
RDS-530
Reduced Diameter Skirt 0.530 in OD
RDS-590
Reduced Diameter Skirt 0.590 in OD
VI
Vacuum Internal Thread
BVI
Bell Vacuum Internal Thread
BVE
Bell Vacuum External Thread
Foot Style (Available only for Skirts: I, SI, E, SE, BI, SBI, BE, SBE, VI, BVI, BVE)
N
Nylon
S
Steel
P
Phenolic
Shaft Style: Round (STANDARD)
STANDARD
Round
TF
Tri-Flat
QC
Quick Change
TSL
Threaded Shank Long (1/4-28)
VARIANTS - WES596 Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot |
|---|---|---|---|---|---|
| WES596-BIN-TF | 1/4-28 | 3/4 in | Tri-Flat | Bell Internal Thread | Nylon |
| WES596-BES-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell External Thread | Steel |
| WES596-C | 1/4-28 | 3/8 in | Round | Close Quarters | |
| WES596-BIS-QC | 1/4-28 | 3/4 in | Quick Change | Bell Internal Thread | Steel |
| WES596-BIN-QC | 1/4-28 | 3/4 in | Quick Change | Bell Internal Thread | Nylon |
| WES596-IP | 1/4-28 | 5/8 in | Round | Internal Thread | Phenolic |
| WES596-IP-TF | 1/4-28 | 5/8 in | Tri-Flat | Internal Thread | Phenolic |
| WES596-IS-QC | 1/4-28 | 5/8 in | Quick Change | Internal Thread | Steel |
| WES596-SBEN | 1/4-28 | 7/8 in | Round | Slotted Bell External Thread | Nylon |
| WES596-ES-QC | 1/4-28 | 3/4 in | Quick Change | External Thread | Steel |
| WES596-BES | 1/4-28 | 7/8 in | Round | Bell External Thread | Steel |
| WES596-ES-TF | 1/4-28 | 3/4 in | Tri-Flat | External Thread | Steel |
| WES596-IS-TF | 1/4-28 | 5/8 in | Tri-Flat | Internal Thread | Steel |
| WES596-BEP-QC | 1/4-28 | 7/8 in | Quick Change | Bell External Thread | Phenolic |
| WES596-S-TF | 1/4-28 | 3/4 in | Tri-Flat | Straight | |
| WES596-S2L-TF | 1/4-28 | 3/4 in | Tri-Flat | 2-Leg | |
| WES596-S2L | 1/4-28 | 3/4 in | Round | 2-Leg | |
| WES596-SCA-TF | 1/4-28 | 3/4 in | Tri-Flat | Straight Cutaway | |
| WES596-S | 1/4-28 | 3/4 in | Round | Straight | |
| WES596-BIP-QC | 1/4-28 | 3/4 in | Quick Change | Bell Internal Thread | Phenolic |
| WES596-S2L-QC | 1/4-28 | 3/4 in | Quick Change | 2-Leg | |
| WES596-VIN-TF | 1/4-28 | 5/8 in | Tri-Flat | Vacuum Internal Thread | Nylon |
| WES596-S3L-TF | 1/4-28 | 3/4 in | Tri-Flat | 3-Leg | |
| WES596-F | 1/4-28 | 3/4 in | Round | Flanged | |
| WES596-FH | 1/4-28 | 3/4 in | Round | Flanged High | |
| WES596-C-TF | 1/4-28 | 3/8 in | Tri-Flat | Close Quarters | |
| WES596-BIP-TF | 1/4-28 | 3/4 in | Tri-Flat | Bell Internal Thread | Phenolic |
| WES596-B-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell | |
| WES596-SBEN-TF | 1/4-28 | 7/8 in | Tri-Flat | Slotted Bell External Thread | Nylon |
| WES596-SCA-QC | 1/4-28 | 3/4 in | Quick Change | Straight Cutaway | |
| WES596-C-QC | 1/4-28 | 3/8 in | Quick Change | Close Quarters | |
| WES596-VIN-QC | 1/4-28 | 5/8 in | Quick Change | Vacuum Internal Thread | Nylon |
| WES596-VIN-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Vacuum Internal Thread | Nylon |
| WES596-SBES | 1/4-28 | 7/8 in | Round | Slotted Bell External Thread | Steel |
| WES596-C-TSL | 1/4-28 | 3/8 in | Threaded Shank Long (1/4-28) | Close Quarters | |
| WES596-VIS | 1/4-28 | 5/8 in | Round | Vacuum Internal Thread | Steel |
| WES596-VIS-TF | 1/4-28 | 5/8 in | Tri-Flat | Vacuum Internal Thread | Steel |
| WES596-IS | 1/4-28 | 5/8 in | Round | Internal Thread | Steel |
| WES596-SIS | 1/4-28 | 5/8 in | Round | Slotted Internal Thread | Steel |
| WES596-VIS-QC | 1/4-28 | 5/8 in | Quick Change | Vacuum Internal Thread | Steel |
| WES596-BIP | 1/4-28 | 3/4 in | Round | Bell Internal Thread | Phenolic |
| WES596-BF | 1/4-28 | 7/8 in | Round | Bell Flanged | |
| WES596-F2L-QC | 1/4-28 | 3/4 in | Quick Change | Flanged 2-Leg | |
| WES596-VIP | 1/4-28 | 5/8 in | Round | Vacuum Internal Thread | Phenolic |
| WES596-BEP | 1/4-28 | 7/8 in | Round | Bell External Thread | Phenolic |
| WES596-BF-QC | 1/4-28 | 7/8 in | Quick Change | Bell Flanged | |
| WES596-BF-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell Flanged | |
| WES596-BF-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell Flanged | |
| WES596-VIP-TF | 1/4-28 | 5/8 in | Tri-Flat | Vacuum Internal Thread | Phenolic |
| WES596-VIP-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Vacuum Internal Thread | Phenolic |
| WES596-FH-QC | 1/4-28 | 3/4 in | Quick Change | Flanged High | |
| WES596-FH-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged High | |
| WES596-BVIN-TF | 1/4-28 | 3/4 in | Tri-Flat | Bell Vacuum Internal Thread | Nylon |
| WES596-SL | 1/4-28 | 3/4 in | Round | Slotted | |
| WES596-B | 1/4-28 | 7/8 in | Round | Bell | |
| WES596-BVIS | 1/4-28 | 3/4 in | Round | Bell Vacuum Internal Thread | Steel |
| WES596-EN-QC | 1/4-28 | 3/4 in | Quick Change | External Thread | Nylon |
| WES596-EP-TF | 1/4-28 | 3/4 in | Tri-Flat | External Thread | Phenolic |
| WES596-EN | 1/4-28 | 3/4 in | Round | External Thread | Nylon |
| WES596-EP | 1/4-28 | 3/4 in | Round | External Thread | Phenolic |
| WES596-BIS-TF | 1/4-28 | 3/4 in | Tri-Flat | Bell Internal Thread | Steel |
| WES596-IN-QC | 1/4-28 | 5/8 in | Quick Change | Internal Thread | Nylon |
| WES596-IN | 1/4-28 | 5/8 in | Round | Internal Thread | Nylon |
| WES596-BVIS-TF | 1/4-28 | 3/4 in | Tri-Flat | Bell Vacuum Internal Thread | Steel |
| WES596-FCA-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged Cutaway | |
| WES596-FCA-QC | 1/4-28 | 3/4 in | Quick Change | Flanged Cutaway | |
| WES596-F2L-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged 2-Leg | |
| WES596-BVIS-QC | 1/4-28 | 3/4 in | Quick Change | Bell Vacuum Internal Thread | Steel |
| WES596-F2L | 1/4-28 | 3/4 in | Round | Flanged 2-Leg | |
| WES596-BVIS-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Bell Vacuum Internal Thread | Steel |
| WES596-BVIP-TF | 1/4-28 | 3/4 in | Tri-Flat | Bell Vacuum Internal Thread | Phenolic |
| WES596-BVIP-QC | 1/4-28 | 3/4 in | Quick Change | Bell Vacuum Internal Thread | Phenolic |
| WES596-BVEN-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell Vacuum External Thread | Nylon |
| WES596-BVEN-QC | 1/4-28 | 7/8 in | Quick Change | Bell Vacuum External Thread | Nylon |
| WES596-SIP-QC | 1/4-28 | 5/8 in | Quick Change | Slotted Internal Thread | Phenolic |
| WES596-SIN-QC | 1/4-28 | 5/8 in | Quick Change | Slotted Internal Thread | Nylon |
| WES596-SIS-QC | 1/4-28 | 5/8 in | Quick Change | Slotted Internal Thread | Steel |
| WES596-SBIS-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted Bell Internal Thread | Steel |
| WES596-BVEN-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell Vacuum External Thread | Nylon |
| WES596-SBIP | 1/4-28 | 3/4 in | Round | Slotted Bell Internal Thread | Phenolic |
| WES596-SIP | 1/4-28 | 5/8 in | Round | Slotted Internal Thread | Phenolic |
| WES596-SIP-TF | 1/4-28 | 5/8 in | Tri-Flat | Slotted Internal Thread | Phenolic |
| WES596-SBIS-QC | 1/4-28 | 3/4 in | Quick Change | Slotted Bell Internal Thread | Steel |
| WES596-SBIN-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted Bell Internal Thread | Nylon |
| WES596-SBIN-QC | 1/4-28 | 3/4 in | Quick Change | Slotted Bell Internal Thread | Nylon |
| WES596-SBES-QC | 1/4-28 | 7/8 in | Quick Change | Slotted Bell External Thread | Steel |
| WES596-SIS-TF | 1/4-28 | 5/8 in | Tri-Flat | Slotted Internal Thread | Steel |
| WES596-SBIS | 1/4-28 | 3/4 in | Round | Slotted Bell Internal Thread | Steel |
| WES596-IN-TF | 1/4-28 | 5/8 in | Tri-Flat | Internal Thread | Nylon |
| WES596-BVES | 1/4-28 | 7/8 in | Round | Bell Vacuum External Thread | Steel |
| WES596-SBIP-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted Bell Internal Thread | Phenolic |
| WES596-BVES-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell Vacuum External Thread | Steel |
| WES596-BVES-QC | 1/4-28 | 7/8 in | Quick Change | Bell Vacuum External Thread | Steel |
| WES596-SBIP-QC | 1/4-28 | 3/4 in | Quick Change | Slotted Bell Internal Thread | Phenolic |
| WES596-ES | 1/4-28 | 3/4 in | Round | External Thread | Steel |
| WES596-B-QC | 1/4-28 | 7/8 in | Quick Change | Bell | |
| WES596-BEP-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell External Thread | Phenolic |
| WES596-S-875-QC | 1/4-28 | 5/8 in | Quick Change | Straight 0.875 in OD | |
| WES596-BIS | 1/4-28 | 3/4 in | Round | Bell Internal Thread | Steel |
| WES596-S-875-TF | 1/4-28 | 5/8 in | Tri-Flat | Straight 0.875 in OD | |
| WES596-BVES-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell Vacuum External Thread | Steel |
| WES596-BVEP | 1/4-28 | 7/8 in | Round | Bell Vacuum External Thread | Phenolic |
| WES596-BVEP-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell Vacuum External Thread | Phenolic |
| WES596-SL-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted | |
| WES596-SCA | 1/4-28 | 3/4 in | Round | Straight Cutaway | |
| WES596-SBES-TF | 1/4-28 | 7/8 in | Tri-Flat | Slotted Bell External Thread | Steel |
| WES596-SEN | 1/4-28 | 3/4 in | Round | Slotted External Thread | Nylon |
| WES596-EP-QC | 1/4-28 | 3/4 in | Quick Change | External Thread | Phenolic |
| WES596-SES | 1/4-28 | 3/4 in | Round | Slotted External Thread | Steel |
| WES596-BEN-QC | 1/4-28 | 7/8 in | Quick Change | Bell External Thread | Nylon |
| WES596-SES-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted External Thread | Steel |
| WES596-SEP-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted External Thread | Phenolic |
| WES596-BEN | 1/4-28 | 7/8 in | Round | Bell External Thread | Nylon |
| WES596-SEP-QC | 1/4-28 | 3/4 in | Quick Change | Slotted External Thread | Phenolic |
| WES596-BES-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell External Thread | Steel |
| WES596-BIN-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Bell Internal Thread | Nylon |
| WES596-SBIN-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted Bell Internal Thread | Nylon |
| WES596-SIN-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Slotted Internal Thread | Nylon |
| WES596-SIS-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Slotted Internal Thread | Steel |
| WES596-EN-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | External Thread | Nylon |
| WES596-ES-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | External Thread | Steel |
| WES596-BEN-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell External Thread | Nylon |
| WES596-BIS-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Bell Internal Thread | Steel |
| WES596-SBIS-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted Bell Internal Thread | Steel |
| WES596-SBIP-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted Bell Internal Thread | Phenolic |
| WES596-EP-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | External Thread | Phenolic |
| WES596-S-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Straight | |
| WES596-S2L-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | 2-Leg | |
| WES596-IP-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Internal Thread | Phenolic |
| WES596-SIP-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Slotted Internal Thread | Phenolic |
| WES596-BIP-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Bell Internal Thread | Phenolic |
| WES596-BEP-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell External Thread | Phenolic |
| WES596-S3L-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | 3-Leg | |
| WES596-F-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Flanged | |
| WES596-BVIN | 1/4-28 | 3/4 in | Round | Bell Vacuum Internal Thread | Nylon |
| WES596-SCA-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Straight Cutaway | |
| WES596-SBEN-QC | 1/4-28 | 7/8 in | Quick Change | Slotted Bell External Thread | Nylon |
| WES596-F-1125 | 1/4-28 | 3/4 in | Round | Flanged 1.125 in OD | |
| WES596-F-1125-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged 1.125 in OD | |
| WES596-F-1125-QC | 1/4-28 | 3/4 in | Quick Change | Flanged 1.125 in OD | |
| WES596-F2L-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Flanged 2-Leg | |
| WES596-FCA-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Flanged Cutaway | |
| WES596-S-875-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Straight 0.875 in OD | |
| WES596-FH-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Flanged High | |
| WES596-SBES-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Slotted Bell External Thread | Steel |
| WES596-SIN | 1/4-28 | 5/8 in | Round | Slotted Internal Thread | Nylon |
| WES596-SBIN | 1/4-28 | 3/4 in | Round | Slotted Bell Internal Thread | Nylon |
| WES596-SL-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted | |
| WES596-IN-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Internal Thread | Nylon |
| WES596-IP-QC | 1/4-28 | 5/8 in | Quick Change | Internal Thread | Phenolic |
| WES596-EN-TF | 1/4-28 | 3/4 in | Tri-Flat | External Thread | Nylon |
| WES596-SEN-QC | 1/4-28 | 3/4 in | Quick Change | Slotted External Thread | Nylon |
| WES596-SES-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted External Thread | Steel |
| WES596-BIN | 1/4-28 | 3/4 in | Round | Bell Internal Thread | Nylon |
| WES596-BEN-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell External Thread | Nylon |
| WES596-F-1125-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Flanged 1.125 in OD | |
| WES596-SEP-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted External Thread | Phenolic |
| WES596-SBEP-TF | 1/4-28 | 7/8 in | Tri-Flat | Slotted Bell External Thread | Phenolic |
| WES596-SBEN-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Slotted Bell External Thread | Nylon |
| WES596-F-QC | 1/4-28 | 3/4 in | Quick Change | Flanged | |
| WES596-SF-QC | 1/4-28 | 3/4 in | Quick Change | Spherical Flanged | |
| WES596-SF-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Spherical Flanged | |
| WES596-SF-TF | 1/4-28 | 3/4 in | Tri-Flat | Spherical Flanged | |
| WES596-S-875 | 1/4-28 | 5/8 in | Round | Straight 0.875 in OD | |
| WES596-SF | 1/4-28 | 3/4 in | Round | Spherical Flanged | |
| WES596-RDS-590 | 1/4-28 | 3/8 in | Round | Reduced Diameter Skirt 0.590 in OD | |
| WES596-S-QC | 1/4-28 | 3/4 in | Quick Change | Straight | |
| WES596-S3L | 1/4-28 | 3/4 in | Round | 3-Leg | |
| WES596-S3L-QC | 1/4-28 | 3/4 in | Quick Change | 3-Leg | |
| WES596-SL-QC | 1/4-28 | 3/4 in | Quick Change | Slotted | |
| WES596-F-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged | |
| WES596-IS-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Internal Thread | Steel |
| WES596-SIN-TF | 1/4-28 | 5/8 in | Tri-Flat | Slotted Internal Thread | Nylon |
| WES596-SEN-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted External Thread | Nylon |
| WES596-SEN-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted External Thread | Nylon |
| WES596-SES-QC | 1/4-28 | 3/4 in | Quick Change | Slotted External Thread | Steel |
| WES596-SEP | 1/4-28 | 3/4 in | Round | Slotted External Thread | Phenolic |
| WES596-B-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell | |
| WES596-BES-QC | 1/4-28 | 7/8 in | Quick Change | Bell External Thread | Steel |
| WES596-SBEP | 1/4-28 | 7/8 in | Round | Slotted Bell External Thread | Phenolic |
| WES596-SBEP-QC | 1/4-28 | 7/8 in | Quick Change | Slotted Bell External Thread | Phenolic |
| WES596-SBEP-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Slotted Bell External Thread | Phenolic |
| WES596-FCA | 1/4-28 | 3/4 in | Round | Flanged Cutaway | |
| WES596-RDS-530 | 1/4-28 | 5/6 in | Round | Reduced Diameter Skirt 0.530 in OD | |
| WES596-RDS-530-TF | 1/4-28 | 5/6 in | Tri-Flat | Reduced Diameter Skirt 0.530 in OD | |
| WES596-RDS-530-QC | 1/4-28 | 5/6 in | Quick Change | Reduced Diameter Skirt 0.530 in OD | |
| WES596-RDS-530-TSL | 1/4-28 | 5/6 in | Threaded Shank Long (1/4-28) | Reduced Diameter Skirt 0.530 in OD | |
| WES596-RDS-590-TF | 1/4-28 | 3/8 in | Tri-Flat | Reduced Diameter Skirt 0.590 in OD | |
| WES596-RDS-590-QC | 1/4-28 | 3/8 in | Quick Change | Reduced Diameter Skirt 0.590 in OD | |
| WES596-RDS-590-TSL | 1/4-28 | 3/8 in | Threaded Shank Long (1/4-28) | Reduced Diameter Skirt 0.590 in OD | |
| WES596-VIN | 1/4-28 | 5/8 in | Round | Vacuum Internal Thread | Nylon |
| WES596-VIS-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Vacuum Internal Thread | Steel |
| WES596-VIP-QC | 1/4-28 | 5/8 in | Quick Change | Vacuum Internal Thread | Phenolic |
| WES596-BVIN-QC | 1/4-28 | 3/4 in | Quick Change | Bell Vacuum Internal Thread | Nylon |
| WES596-BVIN-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Bell Vacuum Internal Thread | Nylon |
| WES596-BVIP | 1/4-28 | 3/4 in | Round | Bell Vacuum Internal Thread | Phenolic |
| WES596-BVIP-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Bell Vacuum Internal Thread | Phenolic |
| WES596-BVEN | 1/4-28 | 7/8 in | Round | Bell Vacuum External Thread | Nylon |
| WES596-BVEP-QC | 1/4-28 | 7/8 in | Quick Change | Bell Vacuum External Thread | Phenolic |
| WES596-BVEP-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell Vacuum External Thread | Phenolic |
Switching from another manufacturer?
We’re here to help.
Our cross reference tool is the easiest way to find an equivalent or alternate part. If it’s not on our list, we’ll still be able to help you switch, perhaps even design a custom tool to your specification. Send us an email or give us call!
SAME DAY SHIPPING
Don't let delayed shipments hold up your assembly line.
We frequently restock our most popular items. Most of our standard microstops are in stock. All our online orders are fullfilled out of Houston, Texas facility and ships same day on in-stock orders placed before 12 PM CST.
Order online© Wescon Industries Inc. 2025601 Century Plaza Dr. Houston, TX 77073Our products are 100% designed and manufactured in our facilities in California and Texas.
