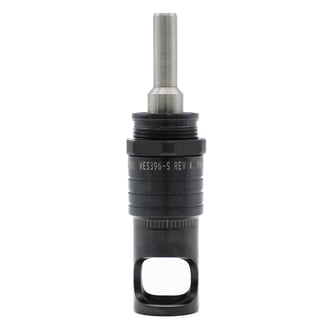

Wescon 396 Microstop - 1/4-28 - 1/2" Cutter Capacity - Straight Skirt
CONFIGURE
Skirt Style: Straight (S)
S
Straight
SL
Slotted
I
Internal Thread
SI
Slotted Internal Thread
E
External Thread
SE
Slotted External Thread
SCA
Straight Cutaway
S3L
3-Leg
Foot Style (Available only for Skirts: I, SI, E, SE)
N
Nylon
Shaft Style: Round (STANDARD)
STANDARD
Round
TS
Threaded Shank (1/4-28)
TF
Tri-Flat
QC
Quick Change
VARIANTS - WES396 Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot |
|---|---|---|---|---|---|
| WES396-IN-QC | 1/4-28 | 7/16 in | Quick Change | Internal Thread | Nylon |
| WES396-S-TF | 1/4-28 | 1/2 in | Tri-Flat | Straight | |
| WES396-SIN-TF | 1/4-28 | 7/16 in | Tri-Flat | Slotted Internal Thread | Nylon |
| WES396-EN | 1/4-28 | 1/2 in | Round | External Thread | Nylon |
| WES396-EN-TF | 1/4-28 | 1/2 in | Tri-Flat | External Thread | Nylon |
| WES396-S | 1/4-28 | 1/2 in | Round | Straight | |
| WES396-S3L-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | 3-Leg | |
| WES396-S3L-TF | 1/4-28 | 1/2 in | Tri-Flat | 3-Leg | |
| WES396-S3L-QC | 1/4-28 | 1/2 in | Quick Change | 3-Leg | |
| WES396-IN-TS | 1/4-28 | 7/16 in | Threaded Shank (1/4-28) | Internal Thread | Nylon |
| WES396-S-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Straight | |
| WES396-SL | 1/4-28 | 1/2 in | Round | Slotted | |
| WES396-SL-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Slotted | |
| WES396-SL-QC | 1/4-28 | 1/2 in | Quick Change | Slotted | |
| WES396-IN-TF | 1/4-28 | 7/16 in | Tri-Flat | Internal Thread | Nylon |
| WES396-SIN-TS | 1/4-28 | 7/16 in | Threaded Shank (1/4-28) | Slotted Internal Thread | Nylon |
| WES396-SIN-QC | 1/4-28 | 7/16 in | Quick Change | Slotted Internal Thread | Nylon |
| WES396-EN-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | External Thread | Nylon |
| WES396-SCA-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Straight Cutaway | |
| WES396-SCA-QC | 1/4-28 | 1/2 in | Quick Change | Straight Cutaway | |
| WES396-IN | 1/4-28 | 7/16 in | Round | Internal Thread | Nylon |
| WES396-SEN | 1/4-28 | 1/2 in | Round | Slotted External Thread | Nylon |
| WES396-SEN-QC | 1/4-28 | 1/2 in | Quick Change | Slotted External Thread | Nylon |
| WES396-SEN-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Slotted External Thread | Nylon |
| WES396-SEN-TF | 1/4-28 | 1/2 in | Tri-Flat | Slotted External Thread | Nylon |
| WES396-S-QC | 1/4-28 | 1/2 in | Quick Change | Straight | |
| WES396-SL-TF | 1/4-28 | 1/2 in | Tri-Flat | Slotted | |
| WES396-SIN | 1/4-28 | 7/16 in | Round | Slotted Internal Thread | Nylon |
| WES396-EN-QC | 1/4-28 | 1/2 in | Quick Change | External Thread | Nylon |
| WES396-SCA | 1/4-28 | 1/2 in | Round | Straight Cutaway | |
| WES396-SCA-TF | 1/4-28 | 1/2 in | Tri-Flat | Straight Cutaway | |
| WES396-S3L | 1/4-28 | 1/2 in | Round | 3-Leg |
